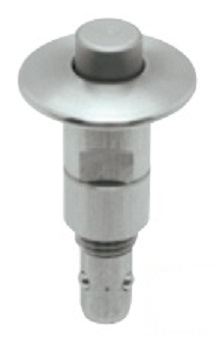

SCSBLPP Ball Locking push-push in Stainless Steel
SCBLPP0616-S
This Spanclamps Part # SCBLPP0616-S is a Ball Locking push-push in Stainless Steel. The receptacle that is used with this clamp is
Recommended Receptacle
Technical information
Weight (g)
75
Heatresistant
180 °C
Shear strength*
9000 N
Tensile strength*
1500 N
Clamping force
50 N
Material Info.
Body
303 Stainless steel
Button
SUS420J2 - Quenched - tempered
Ball
440C - quenched and tempered
Coiled spring
304 Stainless steelWPB
Snap ring
Stainless steel

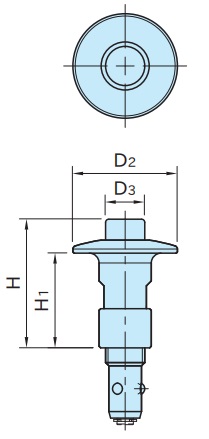

Measurments
Plate thickness
6-16 mm
D (- 0,10 / - 0,05)
10
D1
10
D2
32
D3
12
M
M12x1,5
L
23,5
L1
21,5
H
39,5
H1
29
H2
12
.jpg)
SpanClamps Part No SCBLPP0616-S is factory new.
SpanClamps Part No SCBLPP0616-S has a certificate of Quality, and certificate of Conformity.
*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates. Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
