Quick Accurate Positioner Knob
SpanClamps Quick Accurate Positioner Knob
Quick Locks for Frequent Changeover One touch fasteners
Highlights
Quarter Turn Clamping
Space saving Operation
Locating repeatability: 0.01 mm
Clamping force: 300 N / 600 N
Minimum Plate Thickness : 10mm
ON / OFF indicator for safety
Select Your Part Number
|
Stud-Knob SCQTQAPS |
Receptacle SCQTQAPR |
 |
 |
|---|---|
| SCQTQAPS0819K SCQTQAPS1025K |
SCQTQAPR0819 SCQTQAPR1025 |
Feature

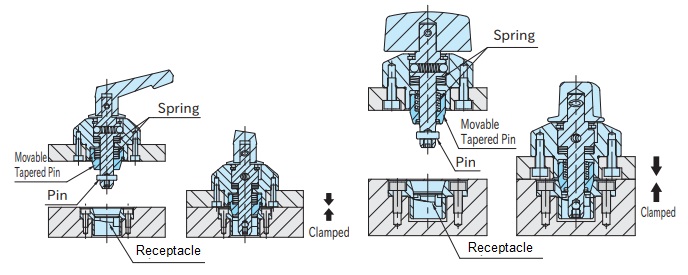

- The plates are located by fitting of the tapered stud and the tapered receptacle.
- The stud contacts the cam surface inside the receptacle, and it compresses the inner spring, then the plates are clamped.
- Note : SCQTQAPS1025H doesn't have locating function.

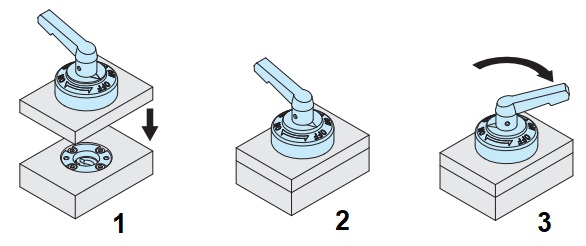

How To Operate
- Ensure the handle/knob is positioned at OFF mark.
- Insert th stud in to the receptacle.
- Turn the handle/knob to ON mark for clamping

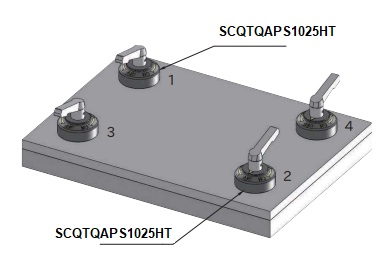

Tightening order
Turn the handle/Knob and clamp inb order of 1-2-3-4
If the stud are not tightened in the correct order, the locating repeatability mays exceed 10µm.
