Spanclamps Heavy Duty Quarter Turn
Spanclamps Heavy Duty Quarter-Turn
Quick Locks for Frequent Changeover with the highest clamping force
Highlights
Very High shear strength: 4800N
Clamping Force of 400N
Minimum Plate Thickness : 6mm or 3mm with spacer SCQTS
ON / OFF indicator for safety
Holding Force: 250N & 400N
Slim Version for tight space
Select Your Heavy-Duty Quater-Turn Stud
|
Plastic Knob SCQTHD-P |
Metal Knob SCQTHD |
Slim Plastic Knob SCQTHDS-P |
Slim Metal Knob SCQTHDS |
 |
 |
 |
 |
|---|---|---|---|
| SCQTHD0620-P | SCQTHD0620 | SCQTHDS0620-P |
Heavy Duty Quarter Turn with Compact Body
The body diameter was reduced from 34mm to 25mm. This fastener can be mounted in a smaller space.
Heavy Duty Receptacle

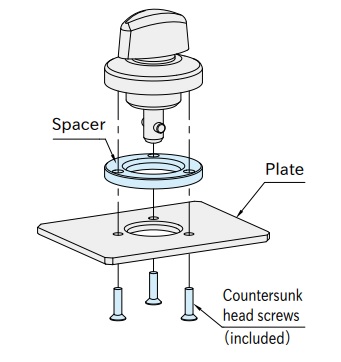

Spacer SCQTS is required for 3mm or more, under 6mm panel thickness
 |
Spacers Part Number |
Compatible Heavy Duty Quarter turn Studs |
| SCQTS25 | SCQTHDS0620-P, SCQTHDS0620 | |
| SCQTS34 | SCQTHD0620-P, SCQTHD0620 |

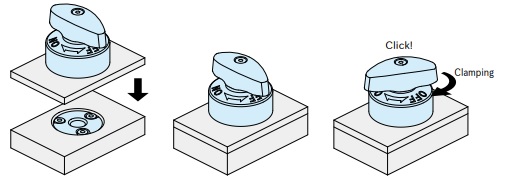

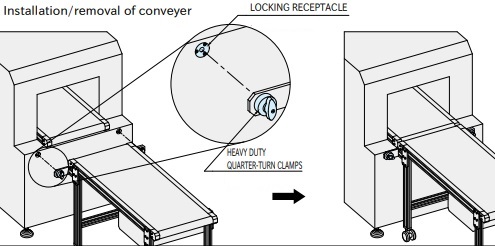

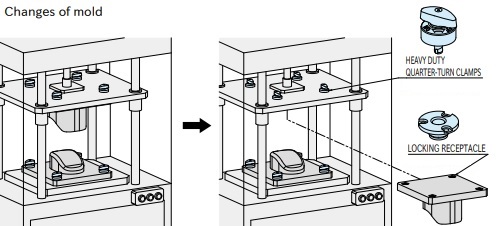

How To Use
- Ensure that the knob is positioned at the "OFF" position.
- Insert the Heavy Duty Quarter-Turn Clamp.
- Turn the knob to the "ON" position for clamping. The knob clicks when it is clamped / unclamped.
Features

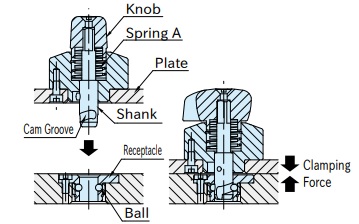

When the cam groove moves along the ball inside the receptacle, the spring A gets compressed to press down the plate.
