SCSBLPP Ball Locking push-push in Stainless Steel fine body
SCBLPPF0610-S
This Spanclamps Part # SCBLPPF0610-S is a Ball Locking push-push in Stainless Steel fine body. The receptacle that is used with this clamp is
Recommended Receptacle
Technical information
Weight (g)
30
Heatresistant
180 °C
Shear strength*
3000 N
Tensile strength*
500 N
Clamping force
30 N
Material Info.
Body
303 Stainless steel
Button
SUS420J2 - Quenched - tempered
Ball
440C - quenched and tempered
Coiled spring
304 Stainless steelWPB
O-ring
Fluororubber (FKM)

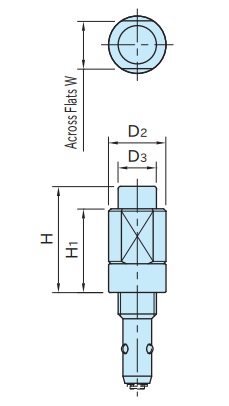

Measurments
Plate thickness
6-10 mm
D (- 0,10 / - 0,05)
6
D1
6
D2
12
D3
8
M
M8x1,25
L
21
L1
19
H
22
H1
17,5
H2
6
.jpg)
SpanClamps Part No SCBLPPF0610-S is factory new.
SpanClamps Part No SCBLPPF0610-S has a certificate of Quality, and certificate of Conformity.
*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates. Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.
