SCISQT Snap-In Quarter Turn with plastic wing head

SCSIQT0610-P

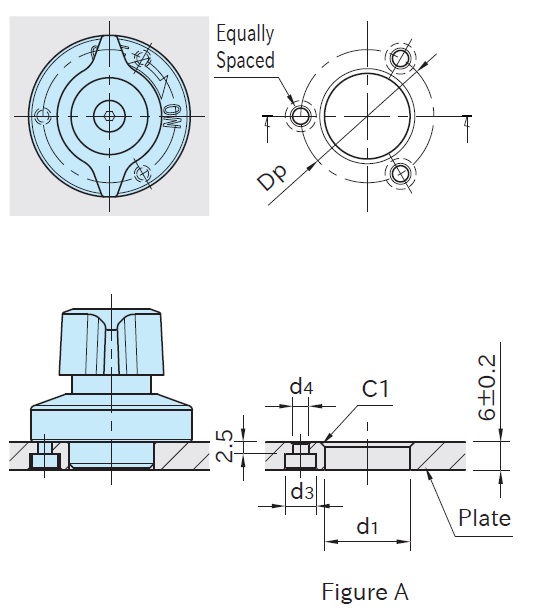

This Spanclamps Part # SCSIQT0610-P is a Snap-In Quarter Turn with plastic wing head. This clamp has a plastic knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 - 5 mm. The receptacles that can be used with this clamp are

Recommended Pin


Material Info.


Body
303 Stainless steel
Shank
S45C - Steel - electroless nickel-plated
Ball
440C Stainless steel - Quenched end tempered
Knob
Polyamide black
Spring
304 Stainless steelWPB Stainless steel

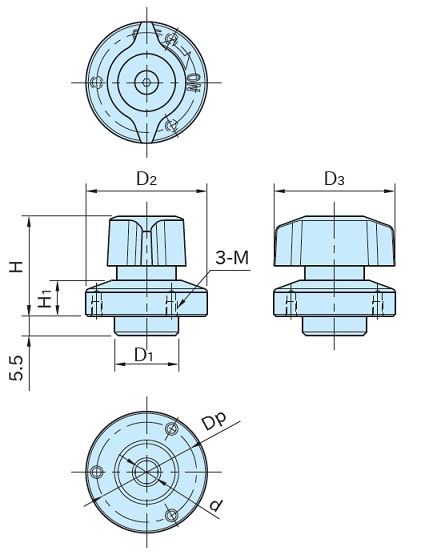

Measurments


Plate thickness
3-10 mm
D (+ 0,04 / + 0,02)
6
D1 (h9)
14
D2
25
D3
25
DP
21
H
23
H1
6,5
M
M2x0,4 - 3 mm deep

SpanClamps Part No SCSIQT0610-P is factory new.
SpanClamps Part No SCSIQT0610-P has a certificate of Quality, and certificate of Conformity.



Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application.*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
