SCCH CAM Handles-Tapped
SCCH-M5

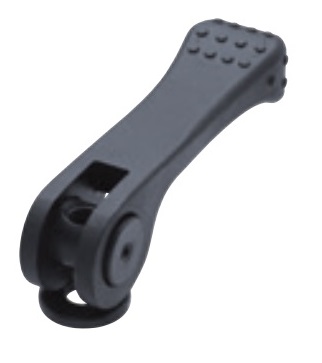

This SpanClamps Part # SCCH-M5 is a Cam Handle Stud. The SCCH-M5 is a Electroless Nickel Plated, and can bes set to a desired direction.
.jpg)
Technical information
Weight (g)
46
Clamping Stroke
2.3
Operating Load*
100
Clamping force
1.3 kN
Material Info.
Body
S45C Steel Black Oxide finish

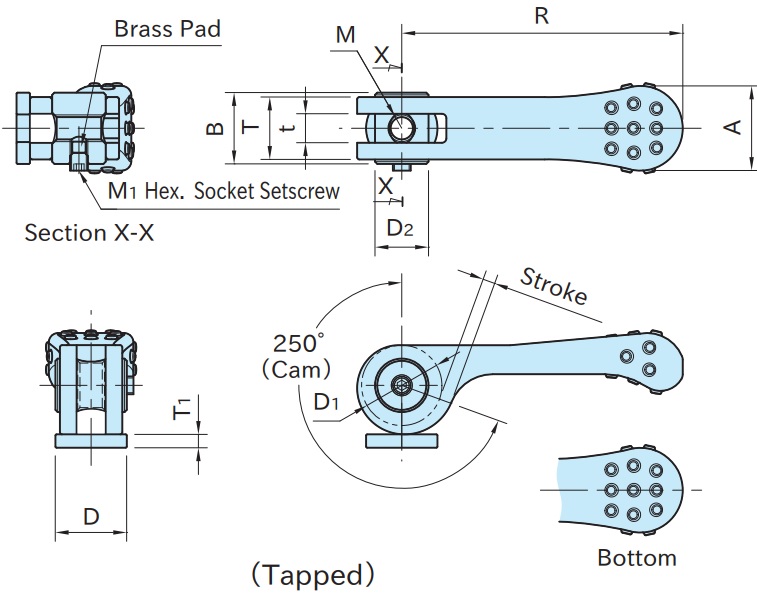

Measurments
A
16
B
14
D1
15
M
M 5x0.8
D2
10
T
2
t
5.5
R
50
.jpg)
SpanClamps Part No SCCH-M5 is factory new.
SpanClamps Part No SCCH-M5 has a certificate of Quality, and certificate of Conformity.
Maximum dynamic loads are currently set at 1/4th of the static loads, this needs to be life tested in the customer application. *Operating Load is static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
