SCSBLQT Knob Locking Quarter Turn with Plastic wing head
SCSBLQT0610-P
This Spanclamps Part # SCSBLQT0610-P is a Knob Locking Quarter Turn with Plastic wing head. This clamp has a plactic knob head and bears indications showing if the clamp is open or closed. The clamp is furnished with 3 socket head cap installation screws of M2x0,4 - 5 mm. The receptacle that is used with this clamp is
Recommended Receptacle
Proper sensor Receptacle
SCBLREM16-S
Technical information
Weight (g)
40
Heatresistant
130 °C
Shear strength*
3000 N
Tensile strength*
500 N
Clamping force
30 N
Material Info.
Body
303 Stainless steel
Shank
S45C - Steel - electroless nickel plated / quenced and tempered
Knob
Polyamide black
Ball
440C - quenched and tempered
Spring
304 Stainless steelWPB

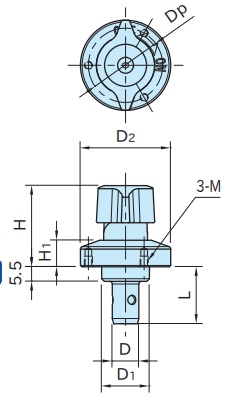

Measurments
Plate thickness
6-10 mm
D (- 0,10 / - 0,05)
6
D1 (h9)
14
D2
25
D3
25
DP
21
L
19,5
H
24,5
H1
6,5
M
M2x0,4 - 3 mm deep
.jpg)
SpanClamps Part No SCSBLQT0610-P is factory new.
SpanClamps Part No SCSBLQT0610-P has a certificate of Quality, and certificate of Conformity.
*Shear & Tensile Strength are static loads. Fastener will break when it receives this load. When the two plates receive a tensile load bigger than the fastener's clamping force, there will be a gap between the plates.
