SCBL Ball Locking Receptacle Stainless Steel

SCBLRM16-S

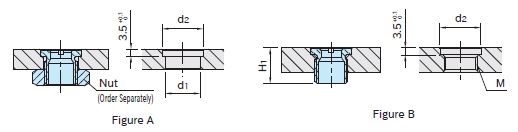

This Spanclamps Part # SCBLRM16-S is a Ball Locking Receptacle. The receptacle has a threaded body and can be installed with a retaining nut for plate thickness 6 to 10mm . Recommended Nut M16 SCBLNM16-S

Proper Knob-Locking /Button Pins

SCSBLQT0614-P

SCSBLQT1220-P

SCBLPP0616

SCBLPPF0616

SCSBLQT0614

SCSBLQT1220

SCBLPP0616-S

SCBLPPF0616-S

SCSBLQT0614-S

SCSBLQT1220-S

Technical information

Weight (g)

Heatresistant

See Clamp or Pin

Shear strength

See Clamp or Pin

Tensile strength

See Clamp or Pin

Clamping force

See Clamp or Pin

Material Info.

Body

303 Stainless steel Stainless Steel

REQUEST A QUOTE DOWNLOAD CATALOGUE

Measurments

Plate thickness

6 mm or more

d (+ 0,2 / + 0,4)

D (h9)

M16x1.5
